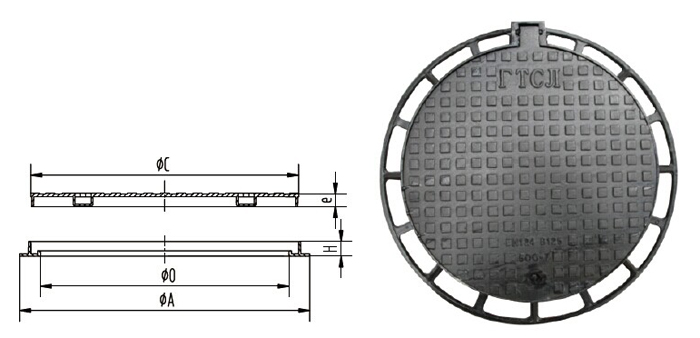

B125 Class-draft

* Ductile Iron
* Single Seal
* Hinge Type
* Lockable Type(optional)

B125 Class

Item Frame Dimensions(mm) Cover Dimensions(mm) Pieces on Each Pallet
ΦO ΦA H ΦC e
40B1 Φ400 Φ510 40 Φ430 34 25
45B1 Φ450 Φ560 40 Φ480 34 25
55B1 Φ5500 Φ660 40 Φ575 25 25
57B1 Φ566 Φ770 90 Φ596 19 11
60B1 Φ600 Φ710 40 Φ630 25 11

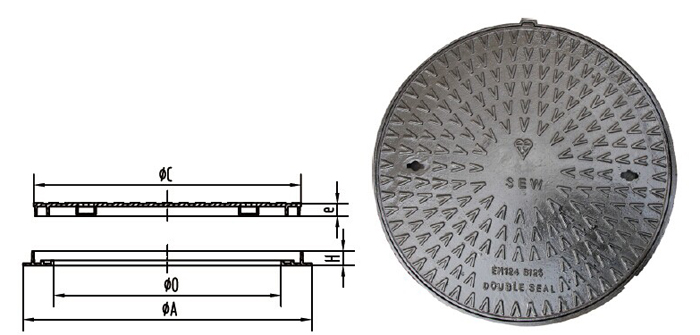

* Ductile Iron
* Double Seal
* Closed Key Holes

B125 Class 2

Item Frame Dimensions(mm) Cover Dimensions(mm) Pieces on Each Pallet
ΦO ΦA H ΦC e
60B2 Φ600 Φ750 40 Φ708 34 25
